Ventilation and Lighting in the Roof

Our lighting options in our shed constructions range from single-strip lighting in the walls or roof to architecturally demanding, individual solutions.

Choose from a variety of features for the lighting, shading, ventilation, and technical fire protection equipment. Roof ridge light bands meet the requirements for smoke extraction and heat extraction - at the same time they create a light, pleasant working environment. Combine light bands at the roof ridge and into the roof with skylights in your production buildings, to ensure the best possible incident light and ventilation.

Saddle roof ridge “Cold stall”

  • Opening width: 0.90 m, 1.40 m and 2.10 m
  • Applications: Barn, facilities
  • Wind deflectors: double-sided, aluminium-design coloured
  • Construction: galvanised mounting bracket, impact-resistant acrylic sheets
  • Bird protection grate on request

Saddle roof ridge “Warm stall"

  • Opening width: 0.90 m, 1.40 m and 2.10 m
  • Applications: Barn, facilities
  • Controller drive: mechanical
  • Wind deflectors: on both sides, aluminium-design coloured, exhaust air control valve infinitely adjustable
  • Construction: galvanised mounting bracket, impact-resistant acrylic sheets
  • Bird protection grate on request

Pent roof ridge “Cold stall”

  • Exhaust air opening: approx. 0.35 – 0.40 m high
  • Application: Barn
  • Optimum exhaust air through unhindered air outlet at the highest point
  • Lighting areas on both sides of the ridge crest possible
  • Wind deflector and bird protection grate on request

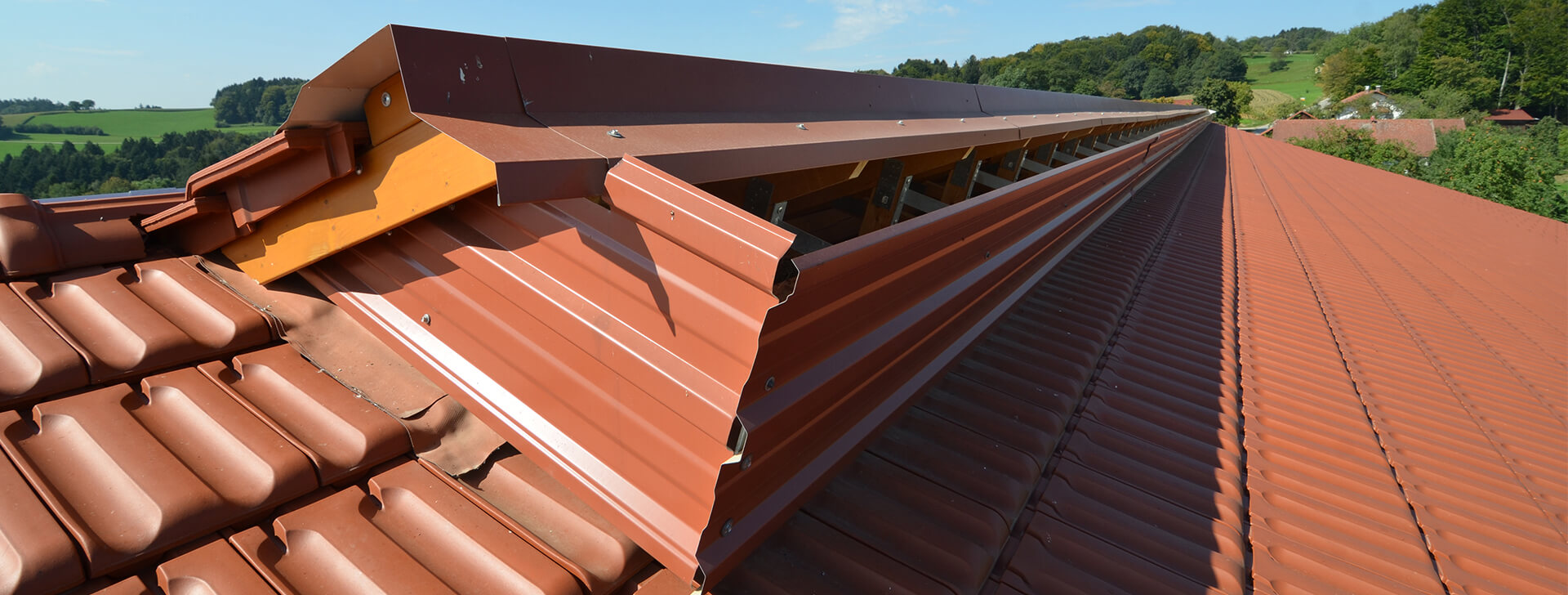

Ridge vent

  • Opening width 0.60 m, opening height approx. 0.40 m
  • Application: Barn
  • optimum air exhaust through unhindered air outlet, insulated saddle roof-ridge cap
  • robust construction with mounted guide tubes and rack drive
  • Drive control: electrical or thermal with temperature sensor
  • Wind control and rain sensor on request

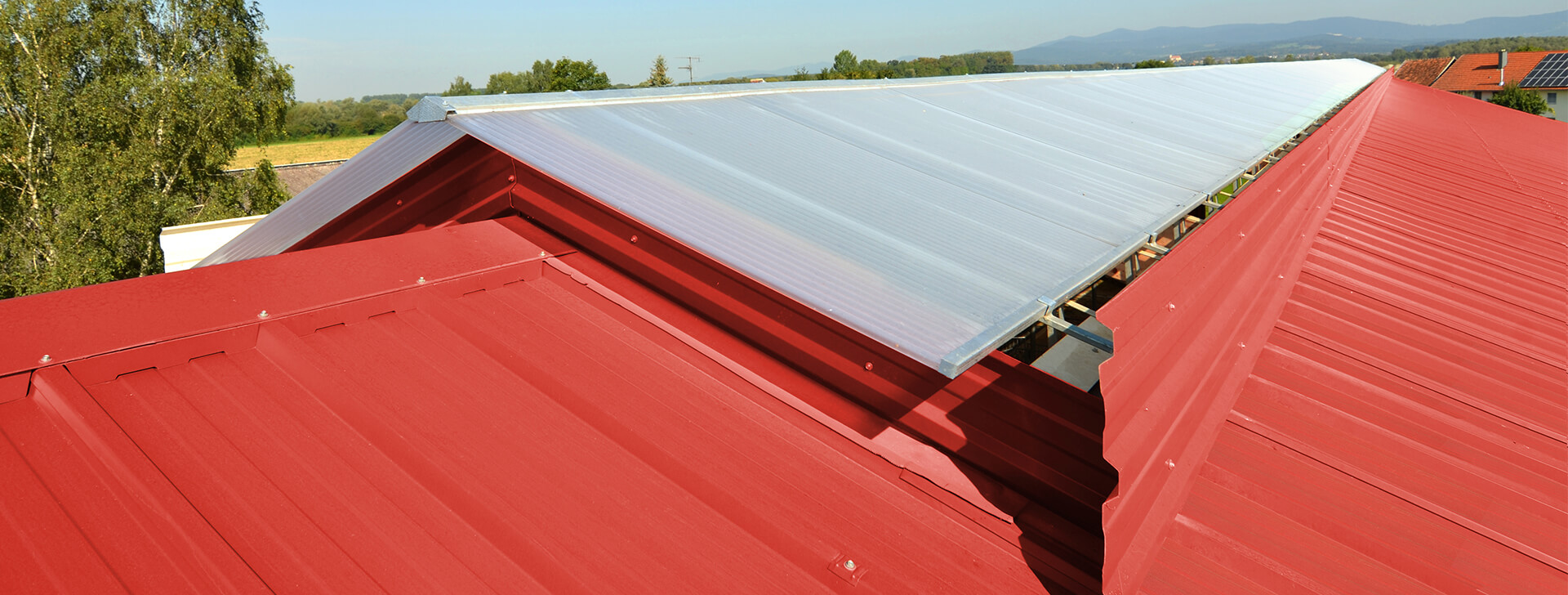

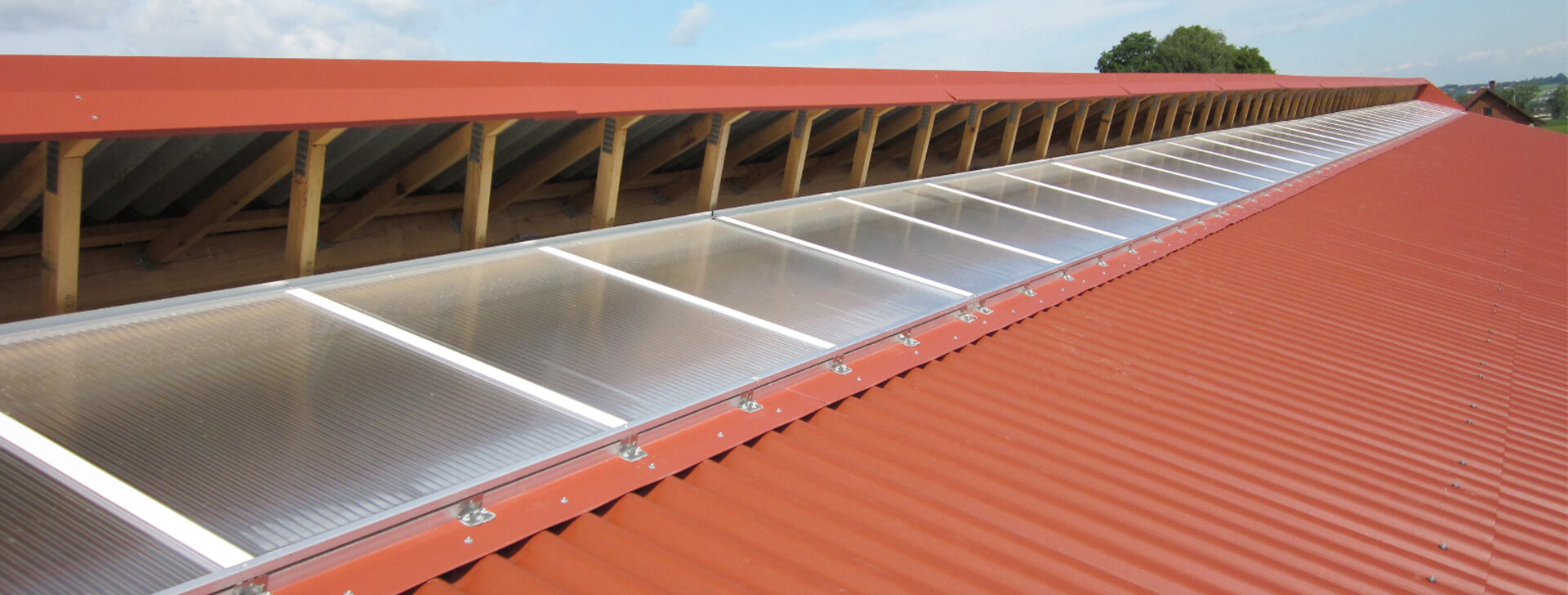

Roof ridge light band

  • Opening width at purlin roof: 1.20 and 2.00 m
  • Opening width at rafter roof: 0.83 and 1.25 m
  • Application: Facilities (shed/barns)
  • no ventilation option, closed design
  • impact-resistant acrylic sheets
